NeoDen N10P Xaiv Thiab Muab Tshuab
■ Qhov Chaw Tso Npe mus txog 20,000CPH
■ Qhov Chaw Qhov Tseeb 0.01 hli
■ Feeder Peev Xwm ntawm 80 pcs 8mm daim kab xev feeders
NeoDen N10P yog lub siab -kev ua haujlwm siab ceev nto mount tshuab, tsim los txhawb koj SMT ntau lawm ceev thiab tawm los nrog nws cov kev teeb tsa muaj zog thiab siab - qib automation.
Lub zeem muag ntse: nta lub koob yees duab kev teeb tsa ntawm Dual Mark Lub Koob Yees Duab + Pem Hauv Ntej Flying Lub Koob Yees Duab + IC Lub Koob Yees Duab. Nws txhawb nqa qhov dav dav, los ntawm 0201 txog 40mm × 40mm (Max Height 16mm).
High Automation & Compatibility: Features tus qauv Tsis Siv Neeg Nozzle Hloov ua haujlwm nrog 39 nozzle txoj haujlwm kom nce nrawm thiab hloov tau yooj yim.
Product Details ofNeoDen N10P Xaiv Thiab Muab Tshuab
Taw qhia ntawm SMT Mounter
Multi-functional smt placement tshuab yog siv los paub txog siab -ceev, siab-precision siab tsis siv neeg tso ntawm cov khoom, yog cov khoom siv tseem ceeb tshaj plaws thiab nyuaj hauv tag nrho.SMT ntau lawm kab.
NeoDen N10P tsis siv neeg nozzle hloov muaj nuj nqi tau ntxiv rau hauv qhov system . 39 nozzle txoj haujlwm nce qhov nrawm thiab yooj yim ntawm kev sib koom ua ke.
NeoDen N10P SMT tshuab, nrog nws cov neeg siab thiab yoog raws, tuaj yeem txhim kho kev tsim khoom ntawm SMT cov kab ntau lawm.
Vim li cas thiaj xaiv NeoDen N10P nto mount machitsis?
【Leap hauv Efficiency】 8 mountingtaub hau thiab kaw tag nrho - voj tswj qhov system, siab tshaj plaws ceev mus txog 20,000CPH.
【Superior raug】 Muab qhov tseeb mus txog ± 0.01mm, nruab nrog Dual Mark Lub Koob Yees Duab, Lub Koob Yees Duab Hauv Pem Hauv Ntej thiab IC Lub Koob Yees Duab, tshwj xeeb tshaj yog lub koob yees duab IC txhawb nqa nws pib calibration los xyuas kom meej qhov chaw ntawm cov khoom me me.
【Superior Compatibility】 Txhawb PCB loj txog li 1500mm x 450mm, nrog rau cov hlua txuas ntxiv los tiv thaiv ultra- cov laug cam ntev. Cov khoom siv dav dav, lub koob yees duab ya txhawb nqa 0201-22mmx22mm, IC lub koob yees duab txhawb nqa 0201-40mmx40mm, qhov siab siab tshaj plaws ntawm cov khoom siv mus txog 16mm.
【Kev pub noj yooj yim】 80 txoj siv sia feeder muaj peev xwm, kev txhawb nqa rau kev sib xyaw siv hluav taws xob thiab pneumatic feeders, thiab lub tais thiab lub raj feeder txhawb kom tau raws li kev xav tau ntau yam.
【Kev txawj ntse Automation】 Tsis siv neeg nozzle hloov pauv muaj nuj nqi (39 nozzle txoj haujlwm) thiab tsis siv neeg nozzle qhov siab calibration txo qis kev cuam tshuam ntawm phau ntawv thiab txhim kho cov khoom tsim tau thiab hloov tau yooj yim.
【ruaj khov thiab ntseeg tau】 Nozzle huab cua siab xyuas thiab txawv txav huab cua siab ncua kev ua haujlwm kom ruaj khov thiab zam cov khoom pov tseg. Optimized software tsim txhim kho kev yooj yim ntawm kev siv thiab kev ruaj ntseg.
【Kev tu yooj yim】 Ntxiv lub thawv pov tseg kom yooj yim rau cov khoom siv rov ua dua tshiab.
NeoDen N10P PCB xaiv thiab tso tshuab Technical Specifications
| Tus naj npawb ntawm lub taub hau | 8 | Ceev | 20,000CPH (Max) |
| Txoj hauj lwm raug | ± 0.01 hli | Component Range |
Flying Lub Koob Yees Duab: 0201-22mmx22mm |
| PCB Loj |
Min . 50mmx50mm |
IC Lub Koob Yees Duab: 0201-40mmx40mm | |
|
Max.: 450mm * 1500mm (tsis muaj IC tais) |
Max Qhov siab: 16mm | ||
|
395mm * 1500mm (nrog IC tais) |
Hwj chim | 600W, Ib theem, 220V / 110V, 50Hz / 60Hz | |
| PCB Thickness | 0.2mm-3.5 hli | Feeder Peev Xwm |
Daim kab xev & Reel: 80pcs (33 pem hauv ntej +47 rear) |
| Cua Source | 0.6Mpa-0.8Mpa |
IC lub thawv: 1 |
|
| Tus nqi ntws | 37L / min | Qhov hnyav | 1,000 kgs |
| Dimension | 1289mmx1254mmx1386mm | Ntim Loj | 1320mmx1290mmx1456mm |
NeoDen N10P Performance Highlights
8 Lub taub hau tso
8 lub taub hau nrog tag nrho kaw- lub voj tswj kev txhawb nqa kom khaws cov khoom ib txhij nrog qhov siab tshaj plaws 20,000CPH.
Daim kab xev Reel Feeders
Txhawb 80 daim kab xev feeders, 20 stick feeders thiab 60 tais feeders, uas ua tiav. Tso cai sib xyaw siv hluav taws xob thiab pneumatic feeders hauv tib lub hauv paus feeder.
Tus kheej -tsim lub koob yees duab Flying
Pem hauv ntej thiab nram qab nrog 2 tiam thib plaub kev kub ceev ya lub koob yees duab paub tshuab, US ON sensors, 28mm industrial lens.
Nozzle chaw nres tsheb
Tsis siv neeg nozzle hloov ua haujlwm nrog39-qhov ua tau zoo heev nce qhov kev tso kawm nrawm thiab yoog raws, txo qis kev ua haujlwm.
Nws pib Nozzle Qhov siab Calibration
Tsis siv neeg calibration ntawm nozzle qhov siab,
cov neeg ua haujlwm tuaj yeem siv tau zoo.
Air Pressure Auto Inspection
Cov huab cua txawv txav ua rau kev tso chaw nres kom tsis txhob muaj kev puas tsuaj thiab cov khoom pov tseg.
chip mounting tshuab video
NeoDen Kev Pabcuam
Peb nyob hauv txoj haujlwm zoo tsis yog tsuas yog muab koj cov khoom zoo SMT kab, tab sis kuj yog qhov kev pabcuam zoo tom qab muag.
Zoo -cov kws tshaj lij engineers yuav muab kev txhawb nqa rau koj.
10 engineers muaj zog tom qab- pab pawg muag khoom tuaj yeem teb cov neeg siv khoom nug thiab nug hauv 8 teev.
Cov kev daws teeb meem muaj peev xwm muab tau hauv 24 teev ob hnub ua haujlwm thiab hnub so.

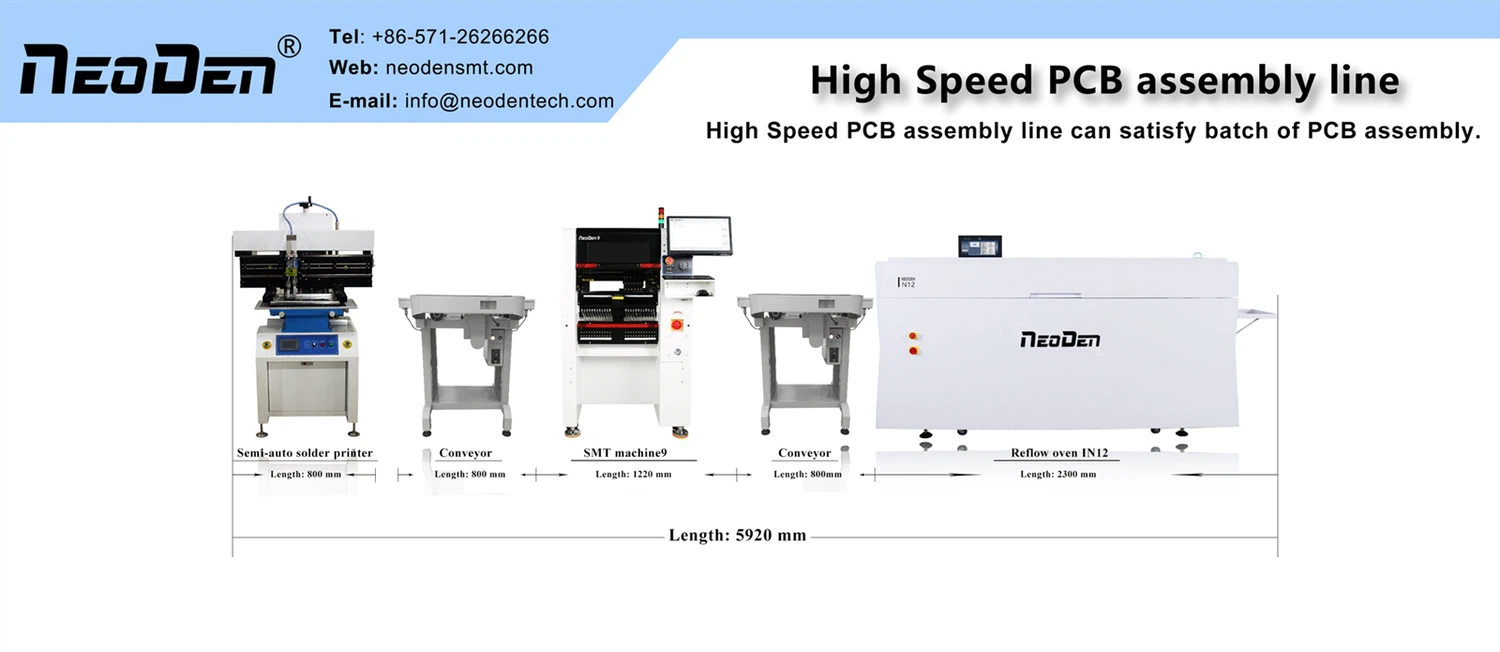

Ua kom tiav SMT Line Compatibility
Case Study|R&D & UAVs Control Assembly (South Korea)
Tag Nrho Tsis Siv Neeg SMT Kab rau Precision Drone Electronics Manufacturing
Kab Configuration: ND1 Tsis Siv Neeg SMT Stencil tshuab luam ntawv+ NeoDen N10P Xaiv & Chaw Tshuab +IN8C Reflow Cub.
- Lub Hom Phiaj Cheeb Tsam:High-cov dav hlau ceev tswj lub rooj tsav xwm & sensor modules.
- Qhov tshwm sim:Ua tiav ± 0.01mm qhov tseeb qhov chaw nrog xoom- tsis xws luag automated reflow soldering.

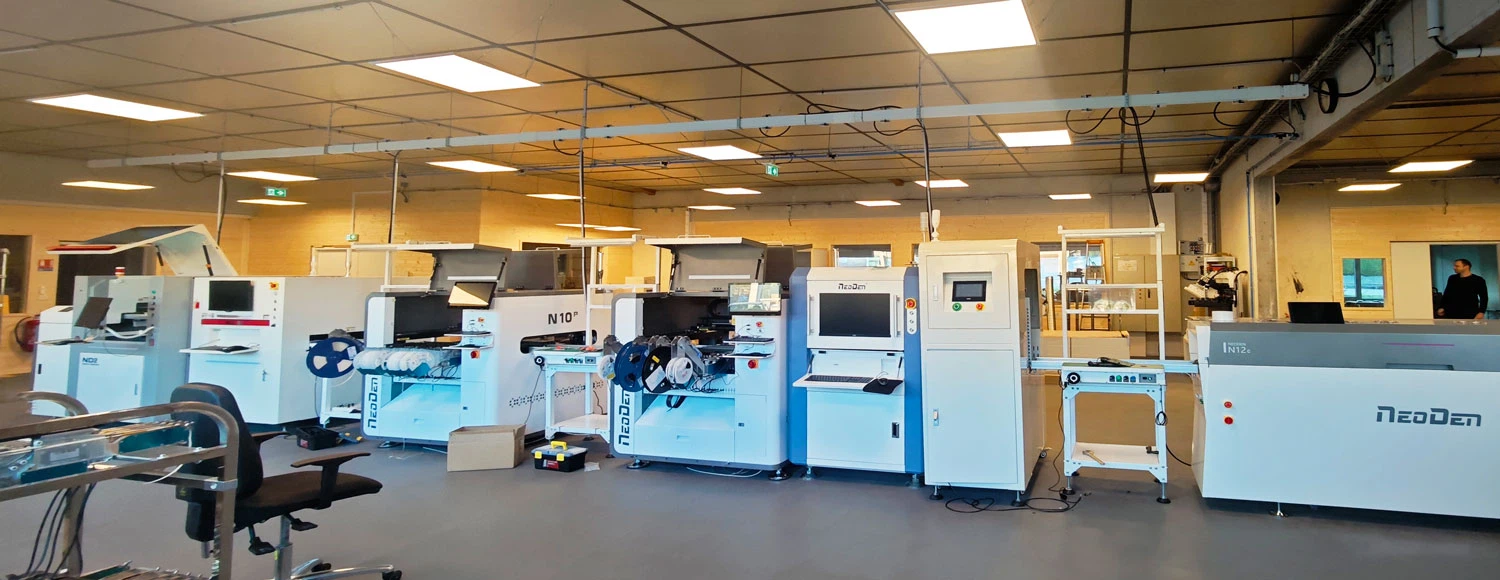

Case Study|Kev suav & Siab -End Electronics EMS (Fabkis)
Siab Automated Siab -Vume SMT Kab nrog Dual NeoDen N10P & Tag Nrho-Kev Tshawb Fawb
Kab Configuration: Auto Loader + ND2 tsis siv neeg tshuab luam ntawv + SPI + DualNeoDen N10P Xaiv & Muab Tshuab +NP 800 AOI + SMT Buffer + IN12C Reflow Cub + Nws pib Unloader.
- Hom Khoom:Cov khoom siv hluav taws xob thiab khoos phis tawj, thaum tseem ua tau siab -cov khoom soj ntsuam cov ntsiab lus.
- Key Performance:Muab ob npaug rau kev tsim tawm los ntawm ob-mounter cascading nrog 100% inline SPI / AOI kev soj ntsuam zoo.
NeoDen: Lub chaw tsim khoom SMT txhim khu kev qha
Hoobkas
Tuam txhab Profile
Zhejiang NeoDen Technology Co., Ltd. tau raug tsim thiab xa tawm ntau yam me me thiab qhov chaw tshuab txij li xyoo 2010. Ua kom zoo dua ntawm peb tus kheej muaj kev paub txog R&D, kev cob qhia zoo, NeoDen yeej lub koob npe nrov los ntawm cov neeg siv khoom thoob ntiaj teb.
Hauv peb lub ntiaj teb Ecosystem, peb koom tes nrog peb cov neeg koom tes zoo tshaj plaws kom xa cov kev pab cuam muag khoom ntau dua, kev ua haujlwm siab thiab kev txhawb nqa zoo.
Peb ntseeg tias cov neeg zoo thiab cov neeg koom tes ua rau NeoDen yog ib lub tuam txhab zoo thiab tias peb txoj kev cog lus rau Innovation, Diversity thiab Sustainability kom ntseeg tau tias SMT automation yog nkag tau rau txhua tus neeg nyiam nyiam nyob txhua qhov chaw.
nrog lub ntiaj teb muaj nyob hauv ntau dua 130 lub teb chaws, kev ua tau zoo heev, qhov raug siab thiab kev ntseeg siab ntawm NeoDen PNP cov cav tov ua rau lawv zoo meej rau R & D, kev tshaj lij prototyping thiab me me rau nruab nrab batch ntau lawm. Peb muab kev daws teeb meem ntawm ib qho khoom siv SMT nres.
ntawv pov thawj
exhibition
FAQs
Q1: Dab tsi yog suav nrog hauv Feeder muaj peev xwm?
A: Txog 80 daim kab xev feeders (33 pem hauv ntej + 47 rear).
Txhawb kev sib xyaw hluav taws xob thiab pneumatic Feeders.
Kev pab txhawb nqa txog li 20 stick feeders lossis 60 tais Feeders.
Q2: Puas muaj kev hloov kho rau NeoDen N10P SMT Mounter?
A: Yog, cov khoom siv yeem suav nrog:
Ntev IC tais tuav
Push- rau saum rooj
Extension conveyor
Kev cai configurations tuaj yeem ua raws li koj cov kev xav tau ntau lawm.
Q3: Koj txoj cai warranty yog dab tsi?
A: 1) Ua ntej-Kev kuaj xyuas khoom xa tuaj
Txhua lub tshuab ua haujlwm nruj ua ntej ua zaub mov xa tuaj. Tus neeg yuav khoom yuav tsum tshuaj xyuas lub pob thaum tau txais.
2) Warranty Coverage
24-hli warranty tag nrho los ntawm hnub xa khoom Lub neej kev pabcuam
3) Kev pab txhawb nqa
Online Q&A thiab kev pab daws teeb meem
Ib -rau- ib qho tom qab - kev muag khoom
Kev sab laj txog kev qhia pub dawb
Q4: Puas yog NeoDen N10P LED SMT tshuab muaj CE?
A: Yog, NeoDen N10P tau txais daim ntawv pov thawj CE los ntawm TÜV NORD.
NeoDen N10P PCB xaiv thiab tso tshuab Technical Specifications
| Tus naj npawb ntawm lub taub hau | 8 | Ceev | 20,000CPH (Max) |
| Txoj hauj lwm raug | ± 0.01 hli | Component Range |
Flying Lub Koob Yees Duab: 0201-22mmx22mm |
| PCB Loj |
Min . 50mmx50mm |
IC Lub Koob Yees Duab: 0201-40mmx40mm | |
|
Max.: 450mm * 1500mm (tsis muaj IC tais) |
Max Qhov siab: 16mm | ||
|
395mm * 1500mm (nrog IC tais) |
Hwj chim | 600W, Ib theem, 220V / 110V, 50Hz / 60Hz | |
| PCB Thickness | 0.2mm-3.5 hli | Feeder Peev Xwm |
Daim kab xev & Reel: 80pcs (33 pem hauv ntej +47 rear) |
| Cua Source | 0.6Mpa-0.8Mpa |
IC lub thawv: 1 |
|
| Tus nqi ntws | 37L / min | Qhov hnyav | 1,000 kgs |
| Dimension | 1289mmx1254mmx1386mm | Ntim Loj | 1320mmx1290mmx1456mm |
