NeoDen ND450 Tsis Siv Neeg Solder Paste Tshuab Luam Ntawv
■ 450 mm * 350 mm Max PCB loj
■ 50 hli * 50 hli Min PCB loj
■ 0.4 hli ~ 4 hli PCB thickness
NeoDen ND450 tsis siv neeg solder paste tshuab luam ntawv sib xyaw ua ke dual - lub koob yees duab Mark system nrog 6-channel teeb qhov chaw, ua ke nrog lub siab-precision sib nqus grating tawm tswv yim module, ua kom muaj kev sib raug zoo tshwj xeeb hauv kev ua haujlwm.
Product Details ofNeoDen ND450 Tsis Siv Neeg Solder Paste Tshuab Luam Ntawv
Taw qhia
NeoDenND450 yog ib lub siab -Tsis Siv Neeg Solder Tshuab Luam Ntawv tau tsim rau cov kab ntau lawm SMT. Ntawm nws lub hauv paus, lub tshuab ua ke nrog lub tswv yim tshiabHluav taws xob + Cua -Ncua tseg Squeegee taub hauthiabHigh -Precision Magnetic Grating Feedback Modulelos xyuas kom meej qhov kev ntsuas qhov siab tsis tu ncua thiab kev sib raug zoo zoo dua.
Ua ke nrog a3-Axis PCB Kho Platformfeaturing ib tug tshwj xeeb backlash tshem tawm mechanism thiab a6-channel teeb qhov chaw Mark Lub Koob Yees Duab, ND450 muab kev ruaj ntseg tshwj xeeb thiab sib xws rau kev luam ntawv PCB nyuaj.Nws yog qhov kev xaiv zoo tshaj plaws rau kev xav tau kev lag luam, suav nrog cov khoom siv hluav taws xob, tsheb electronics, thiab cov cuab yeej kho mob, qhov kev ua haujlwm siab thiab kev ua haujlwm siab yog qhov tseem ceeb.
Fetures ntawm NeoDen ND450 Solder Paste tshuab luam ntawv

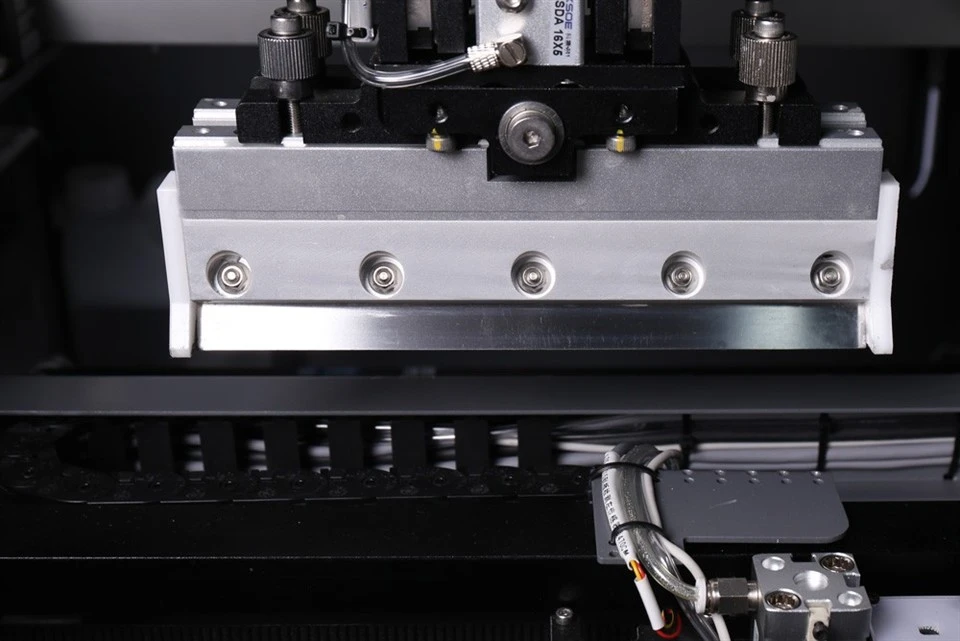

Squeegee taub hau
Los ntawm kev tswj hluav taws xob tshiab thiab kev tsim hluav taws xob pneumatic, lub squeegee siab tau soj ntsuam tas li, ua kom nws ruaj khov thoob plaws hauv cov txheej txheem luam ntawv.
Stencil Fixing Bracket
CNC-machined crossbeams thiab siab- cov lus qhia cov kab ncaj nraim kom xoom pem hauv ntej- rau- rov qab rov qab, thaum dual- kev txiav txim pneumatic lub tog raj kheej lav txhim khu kev qha thiab yooj yim stencil ruaj ntseg.
Adjustable PCB Lifting Platform
Tag nrho CNC machining xyuas kom meej qhov flatness ntawm lub lifting platform. Sab hauv 45-degree qhia kev tsheb ciav hlau tsim tso cai rau kev hloov pauv sai rau PCBs ntawm qhov sib txawv thicknesses.

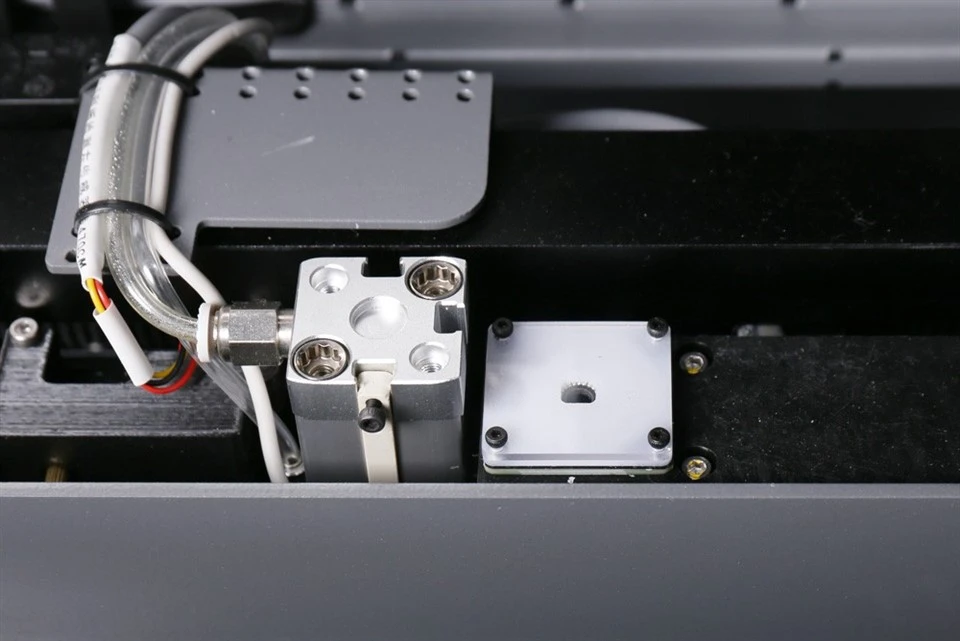

PCB Kho Platform
Ua kom ruaj khov thiab sib xws.Incorporates ib tug tshwj xeeb txhuas ntsia hlau thiab txiv ntseej backlash tshem tawm mechanism los lav qhov precision ntawm PCB txoj hauj lwm kho.
Ntxuav Fluid Spray Module
Siv lub twj tso kua dej thiab ib qho - txoj kev valve, ua ke nrog lub voj voog kev nyab xeeb, kom muaj kev ruaj ntseg thiab kev nyab xeeb thaum ua haujlwm.
Mark Lub Koob Yees Duab
Featuring kev sib koom ua ke dual- lub koob yees duab tsim, nruab nrog 6-channel lub teeb ci, nws zoo yoog rau cov duab thaij duab nrog cov khoom sib txawv.
Sib nqus Grating Feedback Module
Ob lub koob yees duab kab teeb yog tsim los nrog lub siab -precision magnetic grating cov lus tawm tswv yim, ua kom muaj kev ruaj ntseg thiab meej thaum lub sijhawm luam ntawv.
Stencil Underside Cleaning Module
Lub siab -torque pub-thiab- cov lus teb rov qab ua kom cov ntawv ruaj khov, thaum lub tshuab nqa tau yooj yim thiab lub tshuab tsis zoo siab xa cov stencil huv si.
Specification
| Ncej Loj | 400 * 300 mm - 650 * 550 mm | Luam Ntawv Ceev | 1 - 100 hli/s |
| PCB Loj | 50 * 50 mm - 450 * 350 mm | Kev luam ntawv raug | ± 0.025 hli |
| PCB Thickness | 0.4 - 4 hli | Printing Repeat Qhov tseeb | ± 0.025 hli |
| PCB Warpage | < 1% | Duab Rov ua qhov tseeb | ± 0.02 hli |
| Hloov qhov siab | 885 - 920 hli | Lub sijhawm voj voog | 12-18 s/p |
| Demoulding ceev | 0.1 - 30 hli/s | Hloov cov kev taw qhia | L-R, R-L, L-L, R-R |
| Demoulding ntev | 0 - 10 hli | Cua siab | 0.6 - 0.7 Mpa |
| Fais fab mov | 220 V / 110 V | Siv tau scraper ntev | 200 - 450 hli |
| Qhov siab tshaj plaws board hnyav | 4kg ua | Board margin qhov sib txawv | 5 hli |
| Qhov siab tshaj plaws hauv qab | 25 hli | Hloov ceev | 0 - 400 hli/s |
| Kev luam ntawv siab | 0.5 - 10 Kg | Kev luam ntawv stroke | 420 hli |
| Platform hloov ntau yam | X: ± 5mm, Y: ± 5mm, θ: ± 2.8 degree | Kev khiav hauj lwm qhov system | Linux |
| Tshuab Dimension | 992 x 1305 x 1430 mm | Tshuab hnyav | 3 50kg |
NeoDen ND450 solder paste tshuab luam ntawv video
NeoDen: Lub chaw tsim khoom SMT txhim khu kev qha
Hoobkas
Tuam txhab Profile
Zhejiang NeoDen Technology Co., Ltd. tau raug tsim thiab xa tawm ntau yam me me thiab qhov chaw tshuab txij li xyoo 2010. Ua kom zoo dua ntawm peb tus kheej muaj kev paub txog R&D, kev cob qhia zoo, NeoDen yeej lub koob npe nrov los ntawm cov neeg siv khoom thoob ntiaj teb.Hauv peb lub ntiaj teb Ecosystem, peb koom tes nrog peb cov neeg koom tes zoo tshaj plaws kom xa cov kev pab cuam muag khoom ntau dua, kev ua haujlwm siab thiab kev txhawb nqa zoo.Peb ntseeg tias cov neeg zoo thiab cov neeg koom tes ua rau NeoDen yog ib lub tuam txhab zoo thiab tias peb txoj kev cog lus rau Innovation, Diversity thiab Sustainability kom ntseeg tau tias SMT automation yog nkag tau rau txhua tus neeg nyiam nyiam nyob txhua qhov chaw.
ntawv pov thawj
exhibition
FAQ
Q: Qhov ntau thiab tsawg ntawm cov khoom tuaj yeem txhawb nqa NeoDen ND450?
A: NeoDen ND450 yog tsim rau ntau yam khoom siv, suav nrog 0201, 0402, 0603, 0805, 1206, LEDs, diodes, transistors, SOT pob, QFPs, thiab BGAs nrog tus pin suab siab dua 0.3 hli. Nws txhawb PCB qhov ntau thiab tsawg ntawm 50 × 50 hli mus txog 450 × 350 hli, ua rau nws haum rau ntau yam PCB sib dhos daim ntawv thov.
Q: Yuav ua li cas ND450 kom muaj tseeb PCB kev sib raug zoo thaum luam ntawv?
A: NeoDen ND450 nta ib qho kev sib koom ua ke sab saum toj thiab hauv qab dual- lub koob yees duab cim kev lees paub ua ke nrog lub siab - qhov tseeb sib nqus grating tawm tswv yim module. Nws kuj tseem suav nrog 3-axis PCB hloov kho platform nrog cov ntsia hlau txhuas thiab rov qab tshem tawm cov txheej txheem kom ruaj khov thiab raug PCB txoj haujlwm kho. Cov duab calibration dua txoj hauj lwm raug mus txog ± 0.02 hli, thaum luam ntawv raug yog ± 0.025 hli.
Q: Lub taub hau luam ntawv hom NeoDen ND450 siv li cas?
A: NeoDen ND450 txais yuav lub tshuab luam ntawv ntab ntab uas tau tsav los ntawm ob lub zog ncaj qha ncaj qha - txuas lub cev muaj zog. Nws cov hluav taws xob thiab huab cua- ncua kev squeegee lub taub hau txuas ntxiv saib xyuas squeegee siab thoob plaws hauv cov txheej txheem luam ntawv, pab tswj kev luam ntawv ruaj khov thiab sib xws. Lub tshuab txhawb nqa ob qho tib si ib leeg thiab ob chav squeegee luam ntawv thiab muaj kev hloov pauv luam ntawv siab los ntawm 0.5 kg txog 10 kg.
Q: ND450 puas tuaj yeem ua raws li PCBs nrog cov thicknesses sib txawv?
A: Yog. ND450 siv lub siab -precision adjustable PCB lifting platform tsim los ntawm CNC machining los xyuas kom meej flatness. Nws sab hauv 45-degree qhia kev tsheb ciav hlau tsim ua kom hloov tau sai rau PCB thicknesses xws li 0.4 hli mus rau 4 hli, pab tswj kev luam ntawv ruaj khov.
Q: Yuav ua li cas ntxuav stencil muaj nyob rau ntawm NeoDen ND450?
A: NeoDen ND450 txhawb kev ziab, ntub, thiab nqus tsev vacuum. Nws cov stencil underside tu module siv cov ntawv tu cov ntawv pub- thiab- cov lus teb rov qab, lub siab -torque geared lub cev muaj zog, lub zog nqa tau yooj yim, thiab siab - nrawm tsis zoo- lub tshuab nqus tsev kom ruaj khov thiab zoo ib yam stencil tu kev ua haujlwm.
