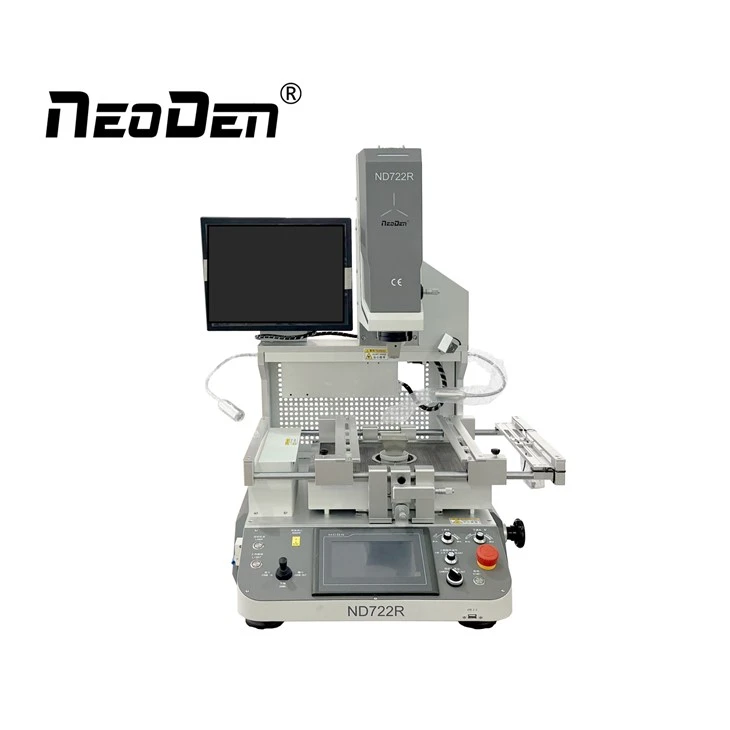

NeoDen ND722R BGA Rework Chaw nres tsheb

Taw qhia ntawm NeoDen ND722R BGA rework chaw nres tsheb

NeoDen ND722R BGA Rework Chaw nres tsheb yog qhov siab -precision thiab siab- cov khoom siv ua haujlwm tau zoo. Nws txais yuav cov qauv tsim tawm kom ntseeg tau siab - qhov tseeb qhov chaw, thiab tau nruab nrog peb thaj chaw cua sov ywj pheej nrog kev tswj qhov kub thiab txias txog li ± 1 degree, kom ntseeg tau qhov zoo tshaj plaws vuam nyhuv. Cov cuab yeej siv tau yooj yim rau kev khiav lag luam, muaj lub vijtsam kov thiab ntau hom kev ua haujlwm, thiab muaj kev nyab xeeb xws li kev tiv thaiv PCB thiab tsis siv neeg lub hwj chim-tawm vim cua sov. Nws yog qhov muaj zog thiab yooj yim -- siv cov kev daws teeb meem rov ua dua.

Vim li cas thiaj xaiv NeoDen ND722R?

【High -precision positioning】Txais cov liner swb uas ua rau XYZ axis tag nrho tuaj yeem ua micro kho lossis qhov chaw nrawm nrog qhov ua tau zoo, ua kom muaj kev ua haujlwm siab.

【Intelligent kub tswj system】Nruab nrog peb thaj chaw cua sov ywj siab (sab saum toj kub, cua kub qis, thiab hauv qab infrared), nrog rau kev tswj qhov kub thiab txias tsis pub dhau ± 1 degree, kom ntseeg tau qhov zoo tshaj plaws vuam nyhuv.

【Ntau- tswj kev ua haujlwm】Nws muaj lub tshuab computer txuas, ua tiav lub computer tswj, yooj yim rau kev teeb tsa, tso saib, txuag, thiab luam ntawv nkhaus.

【Kev tiv thaiv kev nyab xeeb】Txais V-zoo li zawj thiab hloov tau yooj yim clamps los tiv thaiv PCB, thiab muaj kev tiv thaiv kev nyab xeeb xws li tsis siv neeg fais fab -tawm vim cua sov.

【Kev ua haujlwm yooj yim】Nrog lub kov npo interface thiab PLC tswj, nws muab ntau hom kev ua haujlwm (mounting, vuam, desoldering, thiab lwm yam), thiab yooj yim rau siv thiab tswj.

【Kev ntsuas kub sab nraud】Siv tau cov kab ntsuas kub sab nraud los ntsuas qhov ntsuas kub ntawm qhov chaw vuam kom raug ntau dua.

Specification

Nta

Lub zog:5.65KW (Max), Sab saum toj rhaub (1.45KW), Hauv qab rhaub (1.2KW), IR Preheater (2.7KW), Lwm yam (0.3KW)

Txoj kev ua haujlwm:7" HD kov npo

Tswj System:Autonomous cua sov tswj qhov system V2 (software copyright)

Zaub System:15 "SD muaj zaub (720P pem hauv ntej npo)

Alignment System:2 lab Pixel SD cov duab kos duab, tsis siv neeg kho qhov muag zoom nrog laser: liab-dot taw qhia

Nqus adsorption:Tsis siv neeg

Kev tswj qhov kub thiab txias:K-hom thermocouple kaw- voj tswj nrog qhov tseeb txog ± 3 degree

Khoom noj khoom haus:Tsis muaj

Qhov chaw:V-groove nrog universal fixture

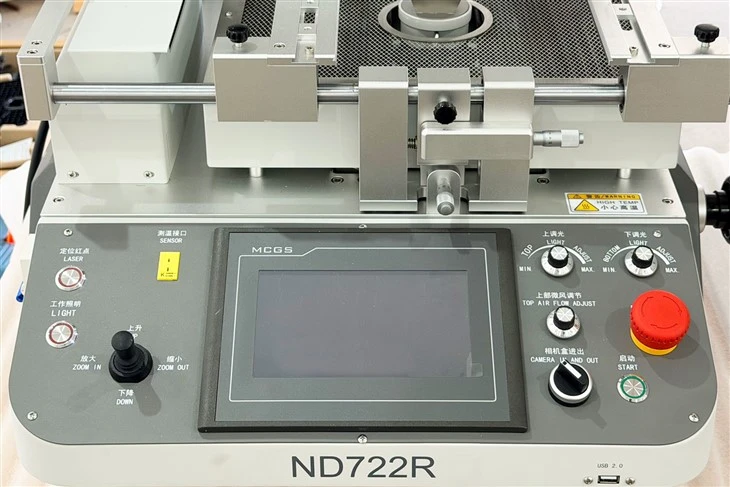

ND722R BGA Rework chaw nres tsheb Paub meej

Peb Cov Kev Pabcuam

Muab cov lus qhia txog cov khoom.

YouTube video tutorials.

Muaj kev paub tom qab- cov kws tshaj lij muag khoom, 24 teev kev pabcuam online.

Nrog peb tus kheej manufactory thiab ntau tshaj 15 xyoo ntawm kev paub nyob rau hauv SMT kev lag luam.

Peb tuaj yeem muab cov neeg siv khoom nrog tus nqi tshaj - cov khoom siv tau zoo.

NeoDen ND722R BGA Rework Chaw nres tsheb Cov neeg siv khoom

🇦🇿 Azerbaijan Cov Neeg Siv Khoom

✓ Turnkey SMT & BGA Rework Teeb

Tag Nrho SMT Sibtham & Siab -Kev Kho BGA Precision

Hauv -Line SMT Production Flow:

PCB Loader ➔ NeoDen ND450 tshuab luam ntawv ➔ Kev tshuaj xyuas SPI ➔ NeoDen N10P Xaiv & Chaw ➔ NeoDen IN12C Reflow ➔ AOI Inspection ➔ PCB Unloader



Offline QC & BGA Rework Solution:

+ NeoDen ND56X X-Ray Inspection + NeoDen ND722R BGA Rework Chaw nres tsheb

Hais txog peb

Zhejiang NeoDen Technology Co., Ltd. tau raug tsim thiab xa tawm ntau yam me me thiab qhov chaw tshuab txij li xyoo 2010. Ua kom zoo dua ntawm peb tus kheej muaj kev paub txog R&D, kev cob qhia zoo, NeoDen yeej lub koob npe nrov los ntawm cov neeg siv khoom thoob ntiaj teb.

• Tsim los ntawm 2010 nrog 200+ cov neeg ua haujlwm & 27, 000+ Sq.m. Hoobkas ntawm cov cuab yeej ywj pheej, kom ntseeg tau tus qauv kev tswj hwm thiab ua tiav cov txiaj ntsig kev lag luam zoo tshaj plaws thiab txuag tus nqi.
• Muaj tus kheej lub chaw machining, txawj sib dhos, tester thiab QC engineers, los xyuas kom meej lub peev xwm muaj zog rau NeoDen tshuab tsim, zoo thiab xa.
• 40+ cov neeg koom tes thoob ntiaj teb suav nrog hauv Asia, Europe, Amelikas, Oceania thiab Africa, kom ua tiav kev pabcuam 10000+ cov neeg siv thoob plaws ntiaj teb, kom ntseeg tau tias cov kev pabcuam hauv zos zoo dua thiab nrawm dua thiab teb sai.
• 3 pawg R&D sib txawv nrog rau tag nrho 25+ cov kws tshaj lij R&D engineers, kom ntseeg tau tias qhov kev txhim kho zoo dua thiab siab dua thiab kev tsim kho tshiab.
• Cov kws tshaj lij thiab cov kws tshaj lij Askiv txhawb nqa & kev pabcuam engineers, kom paub meej cov lus teb tam sim hauv 8 teev, kev daws teeb meem muab hauv 24 teev.
• Qhov tshwj xeeb ntawm tag nrho cov tuam txhab suav teb uas tau tso npe thiab pom zoo CE los ntawm TUV NORD.
• NeoDen muab lub neej-ntev kev txhawb nqa thiab kev pabcuam rau txhua lub tshuab NeoDen, ntxiv rau, kev hloov kho software tsis tu ncua raws li kev siv cov kev paub dhau los thiab kev thov niaj hnub los ntawm cov neeg siv khoom.

Yog tias koj xav tau, thov hu rau uf kom paub ntau ntxiv.

FAQ

Q1. Lub tshuab no muaj dab tsi ua haujlwm?

Vuam hom, hom kev tshem tawm, kev tso kawm hom.

Q2. Qhov no tshuab phau ntawv hom lossis hom tsis siv neeg?

Txhawb kev tshem tawm tsis siv neeg, vuam thiab mount hauv CCD Optical Alignment System, nws yog ib qho yooj yim rau kev khiav lag luam nyob rau hauv high precision txawm rau cov neeg ua haujlwm tsawg dua.

Q3. Hom kev tivthaiv twg tuaj yeem rov ua haujlwm dua ND722R?

Nws kho BGA/POP/CSP/LED/QFN/CSP/LGA/Micro SMD/MLF (Micro Lead Frames), thiab lwm yam SMD Cheebtsam.

Q4. Cov khoom loj npaum li cas thiab PCBs tuaj yeem ua tau?

Cheebtsam: 2x2mm (Min) rau 60x60mm (Max).

PCBs: 6x6mm (Min) txog 412x370mm (Max).

Q5. Qhov kev sib xyaw ua ke zoo npaum li cas?

Alignment precision yog ± 0.02mm, ua tiav ntawm 2 lab Pixel CCD cov duab nrog nws pib - tsom thiab laser positioning.
