SMT Mini Xaiv thiab Qhov Chaw Tshuab
SMT mini xaiv thiab tso tshuab NeoDen4 Video

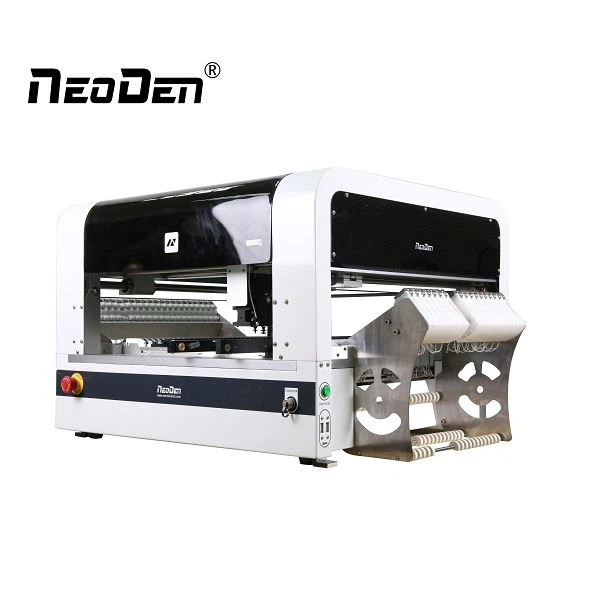

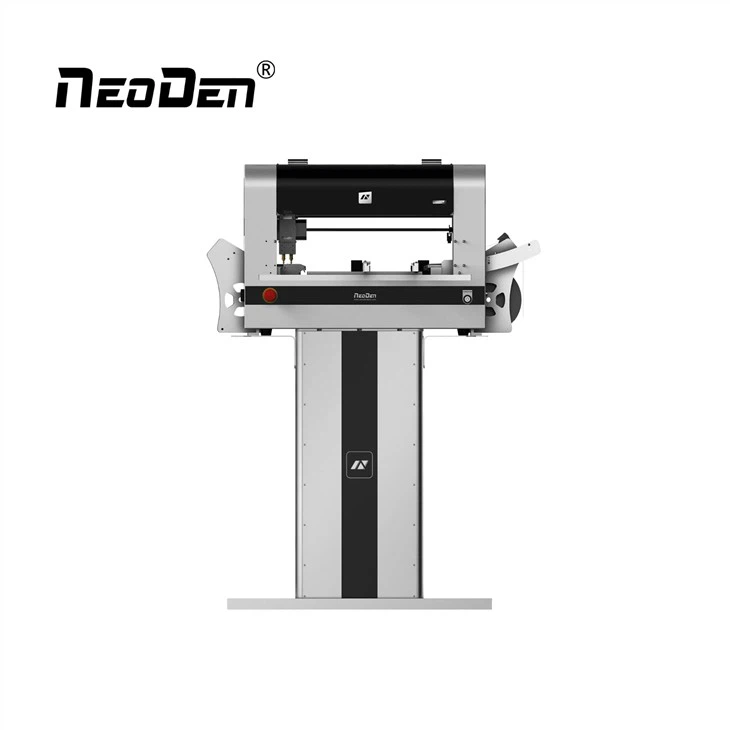

SMT mini xaiv thiab qhov chaw tshuab NeoDen4
Kev piav qhia
| Khoom npe | SMT mini xaiv thiab qhov chaw tshuab NeoDen4 | Tshuab Style | Ib leeg Gantry nrog 4 Lub taub hau |
| Qhov chaw tso kawm | 4, 000CPH | Sab nraud Dimension | Loj: L 680 * W 870 * H 460mm |
| Max siv tau PCB | 290mm * 1200 hli | Component Range | Yam tsawg kawg nkaus: 0201 |
| Feeders | 48 pcs | Loj: TQFP240 | |
| Nruab nrab lub zog ua haujlwm | 220V/160W | Max Qhov siab: 5mm |
Feature
Tsim qauv
Ntawm qhov tseem ceeb, SMT mini tuaj tos thiab qhov chaw tshuab NeoDen4 yog 4-axis Windows- tswj CNC nrog plaub lub tshuab nqus tsev sib cais, txhua qhov txuas nrog nws lub tshuab nqus tsev twj. Lub tshuab siv ib qho kev sib koom ua ke XY npog tag nrho lub zog ntawm lub taub hau, uas yog 310x500mm. Nrog rau kev daws teeb meem ntawm .01mm (10µm) thiab rov ua dua ntawm .02mm (20µm), ib qho XY kev tswj xyuas tuaj yeem txheeb xyuas tau raws li qhov chaw ntawm lub feeder, pib ntawm ib qho array ntawm cov khoom nyob rau hauv ib lub tais los yog daim kab xev luv, ib qho fiducial lossis qhov chaw ntawm uas ib feem yuav tsum tau muab tso rau ntawm ib lub rooj tsavxwm Circuit Court.
Feeders thiab Nozzles
Hluav taws xob daim kab xev-thiab-reel feeders, vibration feeders thiab virtual tais feeders tau txais kev txhawb nqa. Vim tias qhov yooj yim ntawm cov qauv tsim, thiab qhov yuav tsum tau ua haujlwm nrog cov nqi pheej yig ntawm cov khoom, cov kab xev luv kuj tuaj yeem teeb tsa ntawm lub tshuab txaj. Txhua qhov loj me nozzle tuaj yeem ntsia tau rau hauv ib qho ntawm plaub qhov chaw hauv lub taub hau, yog li ib lub tshuab tuaj yeem tswj tau tag nrho cov khoom tsim nyog yam tsis tas yuav hloov lub nozzle. Lub caij nplooj ntoos hlav-loaded nozzles tsuas yog snap hauv thiab rub tawm ntawm lub taub hau. Txhua lub nozzle tuaj yeem ntsia tau rau hauv ib qho ntawm plaub qhov chaw ntawm lub taub hau.
Muab ib-nres SMT sib dhos ntau lawm kab
FAQ
Q1:Kuv tuaj yeem yuav tshuab li cas ntawm koj?
A: (1) Tham nrog peb ntawm kab lossis hauv e-mail.
(2) Sib tham thiab paub meej tus nqi kawg, shipping, txoj kev them nqi thiab lwm yam nqe lus.
(3) Xa koj daim ntawv them nqi perfroma thiab lees paub koj qhov kev txiav txim.
(4) Ua kom them nyiaj raws li txoj hauv kev muab tso rau hauv proforma nvoice.
(5) Peb npaj koj daim ntawv xaj raws li daim ntawv them nqi proforma tom qab lees paub koj cov nyiaj them tag nrho. Thiab 100% zoo kuaj ua ntej shipping.
(6) Xa koj daim ntawv xaj los ntawm kev nthuav qhia lossis los ntawm huab cua lossis los ntawm hiav txwv.
Q2:Peb puas tuaj yeem kho lub tshuab?
A: Tau kawg.
Tag nrho peb cov cav tov tuaj yeem hloov kho.
Txog Peb
Hoobkas
ntawv pov thawj
exhibition
NeoDen Tech nrhiav tau nyob rau hauv 2010, yog ib tug kws chaw tsim tshuaj paus tshwj xeeb nyob rau hauv SMT xaiv thiab qhov chaw tshuab, reflow cub, stencil printing tshuab, SMT ntau lawm kab thiab lwm yam SMT khoom. Peb muaj peb tus kheej R & D pab neeg thiab tus kheej lub Hoobkas, ua kom zoo dua ntawm peb tus kheej nplua nuj kev paub R & D, kev cob qhia zoo, tau txais lub koob npe nrov los ntawm cov neeg siv khoom thoob ntiaj teb.
Peb ntseeg tias cov neeg zoo thiab cov neeg koom tes ua rau NeoDen yog ib lub tuam txhab zoo thiab tias peb txoj kev cog lus rau Innovation, Diversity thiab Sustainability kom ntseeg tau tias SMT automation yog siv tau rau txhua tus neeg nyiam nyiam nyob txhua qhov chaw.
