Online AOI Test Machine
Online AOI Test Machine
Kev piav qhia
Txoj kev xam:Tshuab kev kawm, xim xam, xim extraction, grey scale lag luam, duab sib piv.
Kev tshuaj xyuas hom:PCB npog tag nrho, nrog array thiab kev ua haujlwm tsis zoo.
SPC Statistics muaj nuj nqi:Sau tag nrho cov ntaub ntawv xeem thiab ua kev soj ntsuam, nrog rau kev ua kom yooj yim los xyuas ntau lawm thiab cov xwm txheej zoo.
Yam tsawg kawg nkaus:0201 nti, 0.3 pitch IC.
Optical system:
Lub koob yees duab:5 lab pix puv xim kev kub ceev muaj lub koob yees duab digital, 20 lab pix lub koob yees duab xaiv tau.
Lens daws teeb meem:10um/15um/18um/20um/25um, tuaj yeem ua kev cai.
Teeb pom kev zoo Annular stereo multi-channel xim lub teeb, RGB / RGBW / RGBR / RWBR xaiv tau.
Specification
| Khoom npe | Online AOI Test Machine | Qauv | NPE 800 |
| PCB Thickness | 0.3mm ~ 5mm | Max. PCB Loj (X x y) | 400 x 360 mm |
| Min. PCB Loj (Y x X) | 50 mm x 50 mm | Tsiv ceev | 830mm / sec (Max) |
| PCB qhov siab ntawm av | 900 ± 20mm | Tshuab dimension | L980 * W980 * H1620 mm |
| XY qhov tseeb qhov tseeb | Tsawg dua los yog sib npaug li 8um | Hwj chim | AC220V, 50/60Hz, 1.5KW |
| Qhov hnyav | 550 Kg |
Kev tswj kom zoo
Peb muaj QC tus neeg nyob hauv cov kab ntau lawm ua rau kev tshuaj xyuas.
Tag nrho cov khoom yuav tsum tau kuaj xyuas ua ntej xa khoom. Peb ua inline soj ntsuam thiab zaum kawg soj ntsuam.
1. Tag nrho cov khoom siv raw tau kuaj xyuas thaum nws tuaj txog peb lub Hoobkas.
2. Txhua daim thiab lub logo thiab tag nrho cov ntsiab lus tau kuaj xyuas thaum tsim khoom.
3. Tag nrho cov ntsiab lus ntim tau kuaj xyuas thaum tsim khoom.
4. Tag nrho cov khoom tsim tau zoo thiab ntim tau kuaj xyuas qhov kawg tom qab ua tiav.
Yog tias koj xav tau, thov hu rau peb kom paub ntau ntxiv.
Muab ib-nres SMT sib dhos ntau lawm kab
FAQ
Q1: Koj cov nqe lus ntawm kev xa khoom yog dab tsi?
A: EXW, FOB, CIF, thiab lwm yam.
Q2:Puas muaj cov khoom kuaj ua ntej xa khoom?
A: Yog lawm, tau kawg. Tag nrho peb txoj siv conveyor peb txhua tus yuav tau 100% QC ua ntej xa khoom.
Peb kuaj txhua batch txhua hnub.
Q3:Kuv puas tuaj yeem thov hloov daim ntawv ntim khoom thiab kev thauj mus los?
A: Yog lawm, Peb tuaj yeem hloov daim ntawv ntim thiab kev thauj mus los raws li koj qhov kev thov.
Tab sis koj yuav tsum tau ris lawv tus kheej cov nqi tshwm sim thaum lub sijhawm no thiab kev sib kis.
Hais txog peb
Hoobkas

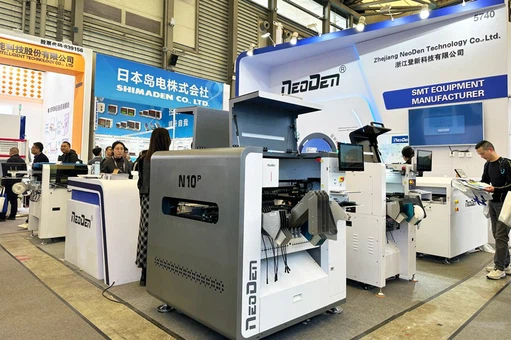

exhibition
