SMD Soldering Tshuab IN6 nrog rau 6 qhov chaw kub thiab txias cua sov
SMD Soldering Tshuab IN6 Nrog Rau Qhov Kub Kub
Nta
1. Tag nrho convection, zoo heev soldering kev ua tau zoo.
2. 6 zones tsim, lub teeb, thiab compact.
3. Kev tswj ntse nrog lub ntsuas kub ntawm qhov ntsuas kub siab, qhov ntsuas kub tuaj yeem ruaj khov nyob rau hauv + 0.2 degree .
4. Thawj qhov ua tau zoo ntawm aluminium alloy cua sov phaj hloov cov yeeb nkab cua sov, ob qho tib si txuag hluav taws xob thiab kev ua haujlwm siab, thiab qhov sib txawv ntawm qhov kub thiab txias yog tsawg dua 2 degree.
5. Thawj built-in soldering pa luam yeeb lim system, elegant tsos thiab eco-phooj ywg.
6. Thaum tshav kub kub rwb thaiv tsev tiv thaiv tsim, lub casing kub yuav tswj tau nyob rau hauv 40 degree.
7. Cov khoom siv hluav taws xob hauv tsev, yooj yim thiab siv tau.
8. ESD tais, yooj yim mus sau PCB tom qab reflowing, yooj yim rau R & D thiab qauv.
9. Ntau cov ntaub ntawv ua haujlwm tuaj yeem khaws cia, hloov pauv ntawm Celsius thiab Fahrenheit, hloov tau yooj yim thiab nkag siab yooj yim.
10. Nyiv NSK kub-cua lub cev muaj zog bearings thiab Swiss cua sov hlau, ruaj thiab ruaj khov.
11. Reinforced heavy-duty carton pob, lub teeb yuag, thiab ib puag ncig-phooj ywg.
12. PCB soldering kub nkhaus tuaj yeem tshwm sim raws li kev ntsuas lub sijhawm
13. Pom zoo los ntawm TUV CE, tso cai thiab txhim khu kev qha.
Paub meej
Specification
| Lub zog xav tau | 110/220VAC 1-phase | Conveyor ceev | 15 - 60 cm/min (6 – 23 nti/min) |
| Rated zog max. | 2000 Watts | Standard Max Qhov siab | 26mm ib |
| Cua sov cheeb tsam kom muaj nuj nqis | saum 3/down3 | Kev taw qhia kev ua haujlwm | laug → right |
| Hom cua sov | Nichrome hlau thiab aluminium alloy cua sov | Kev tswj qhov kub thiab txias | Chav ntsuas kub -300 degree |
| Qhov chaw txias txias kom muaj nuj nqis | 1 | Kub tswj qhov tseeb | ± 0.2 degree |
| PCB kub faib deviation | ± 1 degree | Thaum tshav kub kub | Kwv yees li. 15 feeb. |
| Soldering dav | 260mm (10 nti) | Qhov ntev | 1020 x 507 x 350 mm (L x W x H) |
| Ntev txheej txheem chamber | 680 hli (26.8 nti) | Ntim Loj | 112 * 62 * 56cm |
| Net nyhav | 49kg ua | Qhov hnyav tag nrho | 64 KG |
Them nyiaj thiab Shipping
Ntim:
Non-fumigation Ntoo rooj plaub
Kev xa khoom:
DHL / FEDEX / UPS / EMS / los ntawm hiav txwv / los ntawm huab cua lossis cov neeg siv khoom xaiv.
Kev Them Nyiaj:
100% T / T ua ntej xa zaub mov.

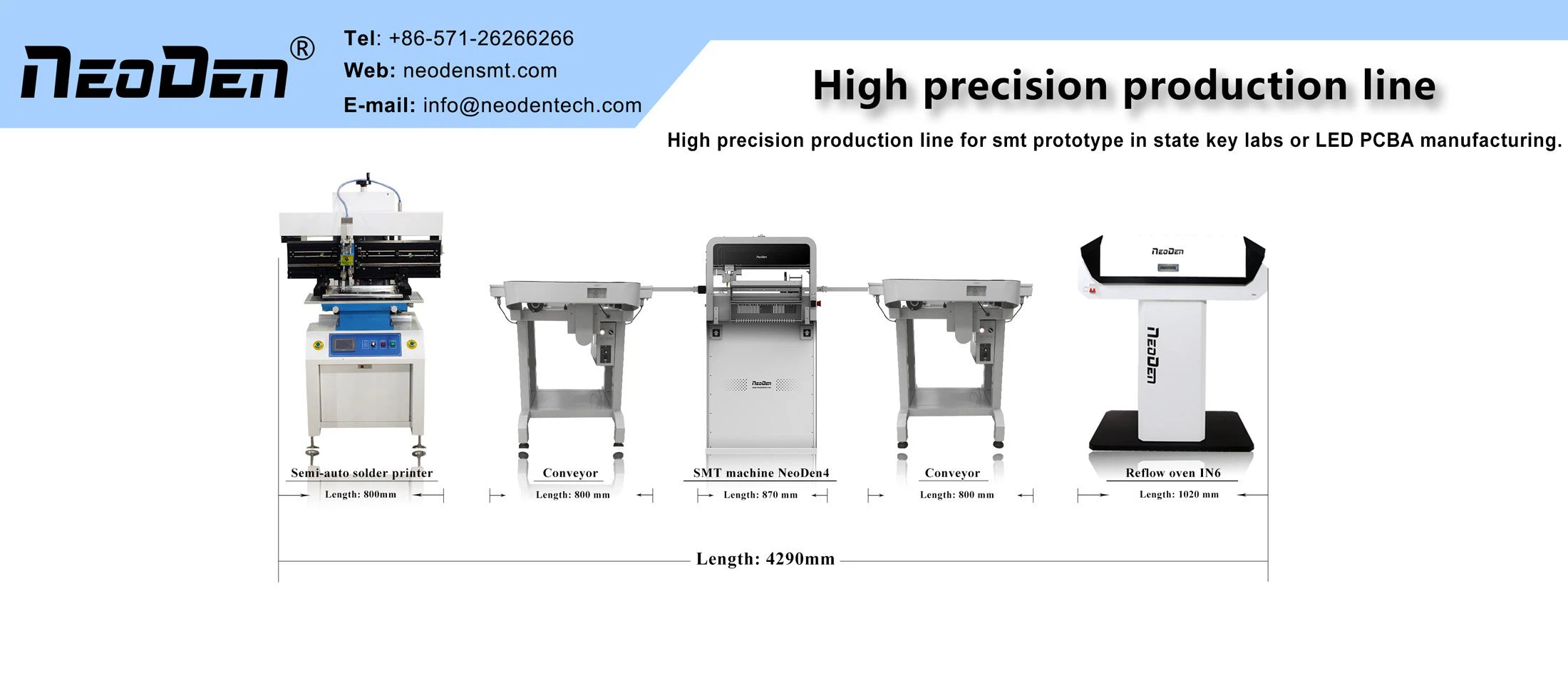

Kev Pom Zoo SMT Cov Kab Ntau Lawm
Yeeb yaj duab
Txog Peb
Hoobkas
Zhejiang Neoden Technology yog ib tus kws tshaj lij kev lag luam nrog 10 xyoo dhau los thiab muab ib qho kev daws teeb meem SMT rau cov neeg siv khoom, cov khoom tseem ceeb yog xaiv & qhov chaw tshuab, reflow qhov cub, thiab tshuab luam ntawv solder. Tam sim no, peb tau muag 10000+ cov tshuab thiab xa tawm mus rau 130+ lub teb chaws hauv ntiaj teb, thiab tau tsim lub koob npe nrov hauv kev ua lag luam.
Daim ntawv pov thawj
Exhibition
SMT ntau lawm kab yog dab tsi?
Kuj hu ua SMT Assembly Line
SMT yog lub thev naus laus zis tshiab los tsim lub voj voog. Ntau xyoo dhau los, Tib neeg tsim cov khoom siv hluav taws xob siv hluav taws xob, yog li cov khoom siv hluav taws xob yog qhov loj thiab nyuaj rau siv thiab nqa nrog.
Yog li lub voj voog tsim kev taw qhia ua me me, tom qab ntawd Tib neeg tau tsim lub PCB, nws tuaj yeem muab lub voj voog rau ntawm PCB me me, thiab tom qab ntawd cov khoom tsim tawm kom tawm cov resistors, capacitors ntawm PCB.
Tag nrho cov thev naus laus zis ntsuas hauv cov txheej txheem no yog SMT.
Cov khoom siv hluav taws xob niaj hnub compressed rau hauv ib lub ntim ntawm tsuas yog ob peb feem kaum ntawm cov cuab yeej ncaj qha mus rau qhov chaw sib dhos ntawm cov khoom sib dhos, luam tawm ntawm cov ntawv luam tawm Circuit Board nto qhov chaw ntawm kev sib dhos tshuab.
Piv nrog cov txheej txheem ib txwm muaj, SMT muaj siab ceev, muaj kev ntseeg siab, tus nqi qis, miniaturization, suab sib txawv, thiab lwm yam tsib yam ntxwv.
