NeoDen K1830 Tsis Siv Neeg SMD Xaiv thiab Chaw Tshuab
■ Qhov Chaw Tso Npe mus txog 16,000 CPH
■ Qhov Chaw Qhov Tseeb 0.01 hli
■ Feeder Peev Xwm ntawm 66 Reel Daim kab xev Feeders (Electric / Pneumatic) thiab 10 IC Tray Feeders
NeoDen K1830 yog lub siab -kev ua haujlwm siab ceev xaiv thiab qhov chaw tshuab, nruab nrog lub voj kaw Servo tswj qhov system, tsim kom muaj txiaj ntsig zoo, ruaj khov, thiab siab - ntim SMT ntau lawm..
Broad Compatibility: Txhawb ntau yam ntawm cov khoom, los ntawm cov khoom me me 0201 mus rau ntau yam IC Pob (QFP, SSOP, QFN, BGA). Max Component Qhov siab yog 18mm.
Product Details ofNeoDen K1830 Tsis Siv Neeg SMD Xaiv thiab Chaw Tshuab
Nta ntawm NeoDen K1830 Automated Pick thiab Chaw Tshuab
- Ultra-Kev kub ceev rau kev tsim khoom loj:8 synchronized nozzles ua tiav mus txog 16,000 CPH kev tso kawm ceev, optimizing nruab nrab thiabloj SMT ntau lawm kabmanufacturing efficiency.
- Nanometer-Qhov tseeb:0.01mm repeatability txhawb 0201 Cheebtsam thiab 5mm -qhov siab capacitors, zoo tagnrho rau LED boards thiab tswj vaj huam sib luag.
- Smart Calibration System:Lub koob yees duab dual kos nws pib-calibrate qhov chaw pub khoom noj. Kaw-loop tawm tswv yim ua kom ib tug -nias PCB thiab pneumatic feeder alignment.
- Industrial- Qib Stability:Linux OS + kaw-loop servo tswj nrog Ethernet kev sib txuas lus lav 7 × 24 teev ntawm kev ua haujlwm tsis cuam tshuam.
- Compatibility ntau yam:Kov QFP/SSOP/QFN/BGA IC tej pob khoom, haum PCBs mus txog 540 × 300mm thiab 18mm tivthaiv qhov siab.
NeoDen K1830 tsis siv neeg SMD tuaj tos thiab tso tshuab video
NeoDen K1830SMT Pick & Chaw TshuabSpecification
| Khoom npe | NeoDen K1830 tsis siv neeg SMD tuaj tos thiab tso tshuab | Max Qhov Chaw Ceev | 16,000 CPH |
| Nozzle Q'ty | 8pcs ib | Qhov hluav taws xob | 220V / 50HZ thiab 110V / 60HZ |
| Reel Daim kab xev Feeder Q'ty (Max | 66 (Electric / Pneumatic) | Kev taw qhia hloov PCB | Sab laug → Sab xis |
| Max PCB loj | 540 * 300mm (hauv ib kauj ruam) | Net nyhav | 280 Kg |
| Qhov tseeb qhov chaw | 0.01mm ib | Qhov hnyav tag nrho | 360 Kg |
Paub meej
Kev kub ceev Nozzle
8 Synchronized Nozzles
Xyuas kom muaj qhov tseeb qhov muab tso rau qhov tseeb
Pneumatic Feeder
66 Reel Daim kab xev Feeder
Kev ua haujlwm yooj yim thiab kev ua haujlwm siab
Kev pom qhov system
Ob lub koob yees duab
Pem hauv ntej thiab nram qab siab txhais lub koob yees duab
Tsav Tsav
Panasonic Servo Tsav A6
Ua lub tshuab ua haujlwm kom raug
Khoos phis tawj
Zaub loj: 12 nti
Ua rau lub tshuab siv tau yooj yim dua
Lub teeb ceeb toom
Zoo nkauj thiab elegant qhia tsim
Peb Qhov Zoo
Muab cov lus qhia txog cov khoom.
YouTube video tutorials.
Muaj kev paub tom qab- cov kws tshaj lij muag khoom, 24 teev kev pabcuam online.
Nrog peb tus kheej manufactory thiab ntau tshaj 10 xyoo ntawm kev paub nyob rau hauv SMT kev lag luam thiab PNP tshuab.
Peb tuaj yeem muab cov neeg siv khoom nrog tus nqi tshaj - cov khoom siv tau zoo.
Yog tias koj xav tau, thov hu rau peb kom paub ntau ntxiv.
Cov neeg siv khoom ntawm NeoDen K1830 SMT Tshuab
Hais txog NeoDen SMT
Hoobkas
Cov ntaub ntawv ceevhais txog NeoDen
1) Tsim los ntawm 2010, 200 + cov neeg ua haujlwm, 27000+ Sq.m. Hoobkas.
2) NeoDen Cov Khoom: Ntau Series PnP tshuab, NeoDen YY1, NeoDen4, NeoDen5, NeoDen K1830, NeoDen9, NeoDen N10P. Reflow Cub IN Series, nrog rau ua tiav SMT Kab suav nrog txhua yam khoom siv SMT tsim nyog.
3) Ua tiav 10000+ cov neeg siv khoom thoob plaws ntiaj teb.
4) 40+ Cov Neeg Sawv Cev Thoob Ntiaj Teb muaj nyob hauv Asia, Europe, America, Oceania thiab Africa.
5) R&D Center: 3 R&D departments nrog 25+ kws R&D engineers.
6) Sau nrog CE thiab tau txais 70+ patents.
7) 30+ kev tswj xyuas zoo thiab kev txhawb nqa engineers, 15+ kev muag khoom loj thoob ntiaj teb, rau cov neeg siv khoom teb raws sij hawm hauv 8 teev, thiab cov kev daws teeb meem muab hauv 24 teev.
Daim ntawv pov thawj

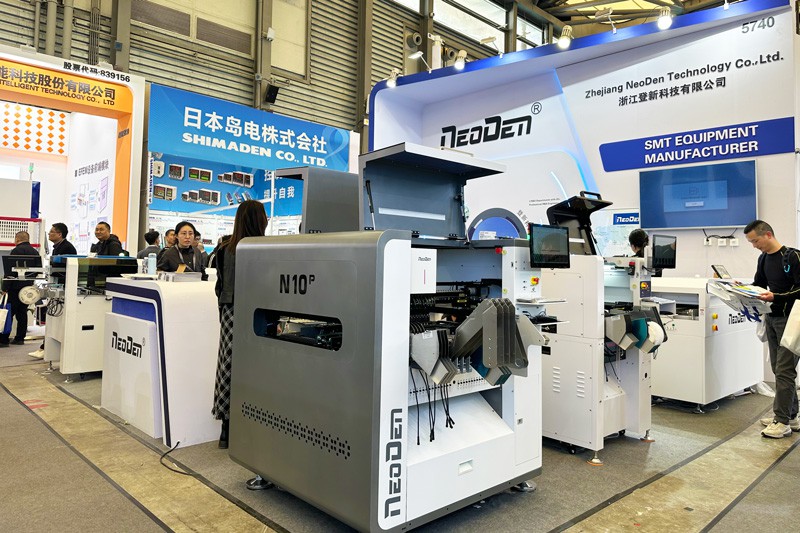

Exhibition
NeoDen muab ib qho - nres SMDCov kab ntau lawm rau koj xaiv
Yog tias koj xav tau, thov tsis txhob yig xa koj cov lus nug.
FAQ
Q: Cov khoom siv dab tsi tuaj yeem ua rau NeoDen K1830 SMT tshuab?
A: Lub NeoDen K1830 txhawb nqa cov khoom xws li 0201 txog 40 x 40 mm, suav nrog nplua - suab ICs, LEDs, diodes, thiab triodes.
Nws tseem ua haujlwm IC pob khoom xws li QFP, SSOP, QFN, thiab BGA, nrog rau qhov siab tshaj plaws ntawm 16 hli.
Q: Dab tsi ntawm PCB Qhov Loj Puas Yog NeoDen K1830 Txhawb?
A: Txheem: 540 x 300 mm
Yeem ncua ntev: 1500 x 300 mm
Q: Leej twg yog NeoDen K1830 Automated Pick thiab Chaw Tshuab Haum rau?
A: NeoDen K1830 yog qhov zoo tshaj plaws rau nruab nrab- nplai ntau lawm ib puag ncig, muab tus nqi- siv tau zoo rau cov chaw tsim khoom uas xav tau cov khoom siv siab thiab qhov tseeb.
Q: Peb qhov chaw ua haujlwm qhov rooj / of elevator tsis loj, qhov qauv no puas muaj nyob hauv lub elevator li qub?
A: Yog, peb tshwj xeeb tsim nws nqaim rau cov neeg siv khoom feem ntau hauv cov tsev ua haujlwm.
Q: Dab tsi ua haujlwm ntawm NeoDen K1830 siv?
A: NeoDen K1830 khiav ntawm Linux-raws li kev khiav haujlwm, ua kom muaj kev ruaj ntseg thiab ruaj ntseg.
NeoDen K1830SMT Pick & Chaw TshuabSpecification
| Khoom npe | NeoDen K1830 automatic SMD pick and place machine | Max Qhov Chaw Ceev | 16,000 CPH |
| Nozzle Q'ty | 8pcs ib | Qhov hluav taws xob | 220V / 50HZ thiab 110V / 60HZ |
| Reel Daim kab xev Feeder Q'ty (Max | 66 (Electric / Pneumatic) | Kev taw qhia hloov PCB | Sab laug → Sab xis |
| Max PCB loj | 540 * 300mm (hauv ib kauj ruam) | Net nyhav | 280 Kg |
| Qhov tseeb qhov chaw | 0.01mm ib | Qhov hnyav tag nrho | 360 Kg |
