High Precision SMD PCB los ua ke kab=YS350 stencil tshuab luam ntawv + J08 smt conveyor + Neoden7 smt tos thiab qhov chaw tshuab + J08 smt conveyor + T5L reflow soldering cub
YS350 Stencil tshuab luam ntawv:
PCB loj: 400 * 240mm
Printing cheeb tsam: 500 * 320mm
PCB tsau system: Pin positioning
Ncej loj: L (550-650) * W (370-470)
Kho rau lub rooj: pem hauv ntej / nram qab ± 10mm, sab laug / sab xis ± 10mm
Printing precision: ± 0.2mm Repeating raug: ± 0.2mm
PCB thickness: 0.2-2.0 hli
Cua qhov chaw: 4-6kg / cm2
Fais fab mov: AC220V 50HZ
Qhov Loj: L800 * W700 * H1700
Ntim qhov loj: 1050 * 900 * 1850
Net nyhav: 230kg
Tag nrho qhov hnyav: 280KG
NeoDen7 Chip Mounter:
Feature:
1. Integrated flying vision system
2. Panasonic servo lub cev muaj zog, txoj hauj lwm tawm tswv yim los ntawm 2 micron linear scales txuas nrog lub taub hau precision
3. 6 ib txhij tos- taub hau
4. Max ceev mus txog 14,000cph
5. Lub GUI (graphical user interface) hauv nws chav kawm siv Windows raws li software tso cai rau kev ua haujlwm hauv feeb
6. YAMAHA pneumatic feeders 8mm / 12mm / 16mm / 24mm
7. Max . 64pcs daim kab xev feeders muaj
8. Txhawb nqa ntau yam ntawm cov khoom siv los ntawm 0402' rau 40X40mm IC (lead pitch 0.4mm), hom LED, connectors thiab lwm yam.
9. Kev them nyiaj yug txiav daim kab xev, raj pob los yog lub tais pob khoom tivthaiv.
Technical Parameters:
| Nozzle taub hau qty | 6 | Kev sib tw | Flying pom lub koob yees duab |
| Tsav lub cev muaj zog | Panasonic servo lub cev muaj zog A6 | Max ceev | 14,000 CPH |
| Max daim kab xev feeder muaj peev xwm | 64 | Yam tsawg tshaj plaws | 0402' |
| Lwm yam feeder | Tray feeder, vibration feeder (xaiv tau) | Loj tshaj plaws | 40 * 40mm (0.4mm) |
| Qhov chaw tso chaw | 630 * 300mm (1200mm yeem) | Max qhov siab | 10 hli |
| Cua qhov chaw | 0.6 Mpa | Fais fab mov | 220v/ 110v |
| Packing loj | 142 * 122 * 166.5cm | N.W/ G.W. | 280KG / 360KG |
| Qauv | NeoDen 7 |
Video los ntawm cov neeg siv khoom tawm tswv yim:
1.https://drive.google.com/open?id=1zNlqHOnFmXRSSJbu6NRxwlKI-KiXUSWQ
2.https://drive.google.com/open?id=1WtwDgiMjFgYHF3WoY6aSvnYqMXCKTj8-
3.https://drive.google.com/open?id=164WBltxP1xbb5WDVFail1YESAUIsRcAY
4.https://drive.google.com/file/d/1TUa5GmkzbBzk5NOOPSuRPlvRqjihIb7k/view?usp=kev sib koom
J08 SMT conveyor:
SMT conveyor Parameter:
|
Fais fab mov |
Ib theem 220V 50/60HZ 100W |
|
Conveyor Length |
80 cm |
|
Conveying Belt |
ESD siv |
|
Kev ceev ceev |
0.5-400mm / min |
SMT conveyor specification:
|
Packing Loj (cm) |
87*72*24 |
|
PCB muaj dav (mm) |
30-300 |
|
PCB muaj qhov ntev (mm) |
50-320 |
|
GW (kg) |
49 |

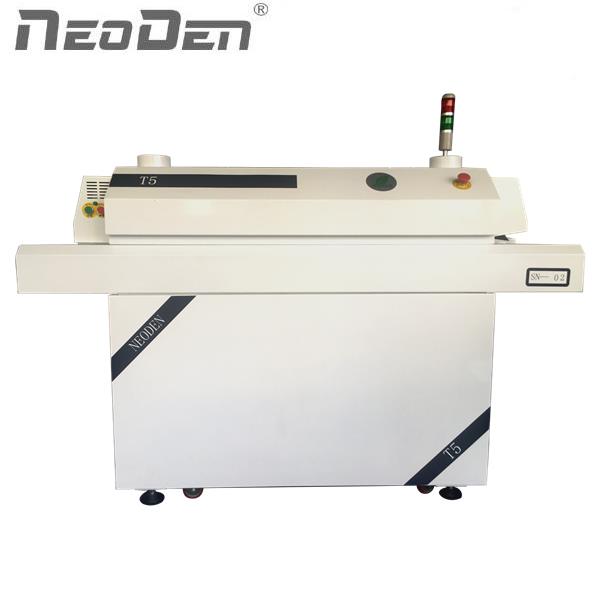

T5L Reflow soldering qhov cub:
Length * Dav * Qhov siab (mm): 1800 * 600 * 1220mm
Peak zog (KW): 7.8
Lub zog ua haujlwm (KW): 3.5
Input voltage (V): 220/380
Conveyor Dav (mm): 300
Standard Max Qhov siab (mm): 25mm;
Max Ceev ntawm Conveyor (mm): 1000
Ntim Loj: 1890 * 690 * 1280mm
Qhov hnyav tag nrho: 220KG
NeoDen muab tag nrho smt sib dhos kab kev daws teeb meem, suav nrog SMT reflow qhov cub, yoj siv lub tshuab, tuaj tos thiab tso lub tshuab, tshuab luam ntawv muab tshuaj txhuam, PCB loader, PCB unloader, nti mounter, SMT AOI tshuab, SMT SPI tshuab, SMT X{0}}Ray tshuab, SMT sib dhos kab khoom siv, PCB ntau lawm cov khoom siv hu rau peb, thiab lwm yam. cov ntaub ntawv:
