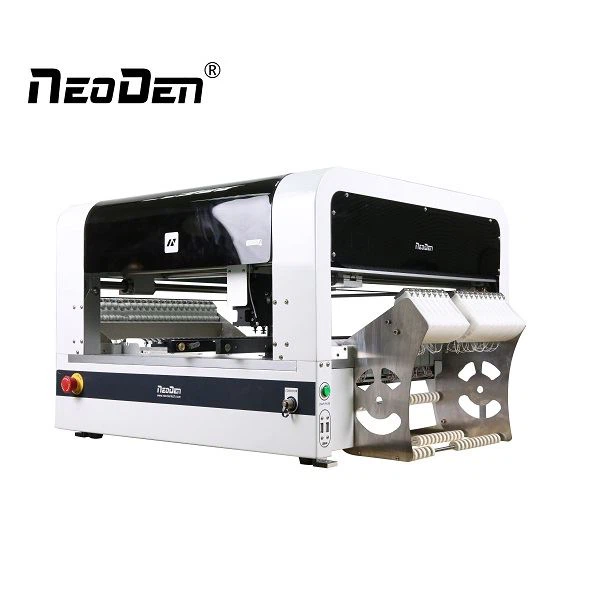

SMD Chip Mounter Tshuab
Taw qhia
Neoden4 SMD nti mounter tshuab nruab nrog ob lub koob yees duab zoo, nws pib ntsia version txhawb 0.6m/1.5meter Ntev PCBs.
Cim
1. Ob lub koob yees duab kho qhov system, txhawb kev ntsuas sib txawv sib txawv ntawm 0201 txog BGA, TQFP, QFN.
2. Electronic Auto daim kab xev reel feeder (Auto Peel Box + Auto Feed box).
3. Plaub qhov tseeb ua haujlwm taub hau nrog SamSung hom nozzles.
4. Txhawb nqa software hloov kho online thiab siv tus phooj ywg zoo.
Kev qhia tshwj xeeb
| Khoom npe | NeoDen4 SMD Chip Mounter tshuab |
Tshuab Style | Tib Gantry nrog 4 Lub Taub Hau |
Tus Nqi Tso Npe | 4000 hli |
Sab Nraud Dimension | L 680*W 870*H 460mm |
Max siv tau PCB | 290 hli*1200 hli |
Feeders | 48ks ua |
Lub zog ua haujlwm nruab nrab | 220V/160W |
Cheeb Tsam Ntau Yam | Qhov Loj Me Me: 0201 |
| Loj Tshaj Loj: TQFP240 | |
| Max Qhov siab: 5mm |
Paub meej

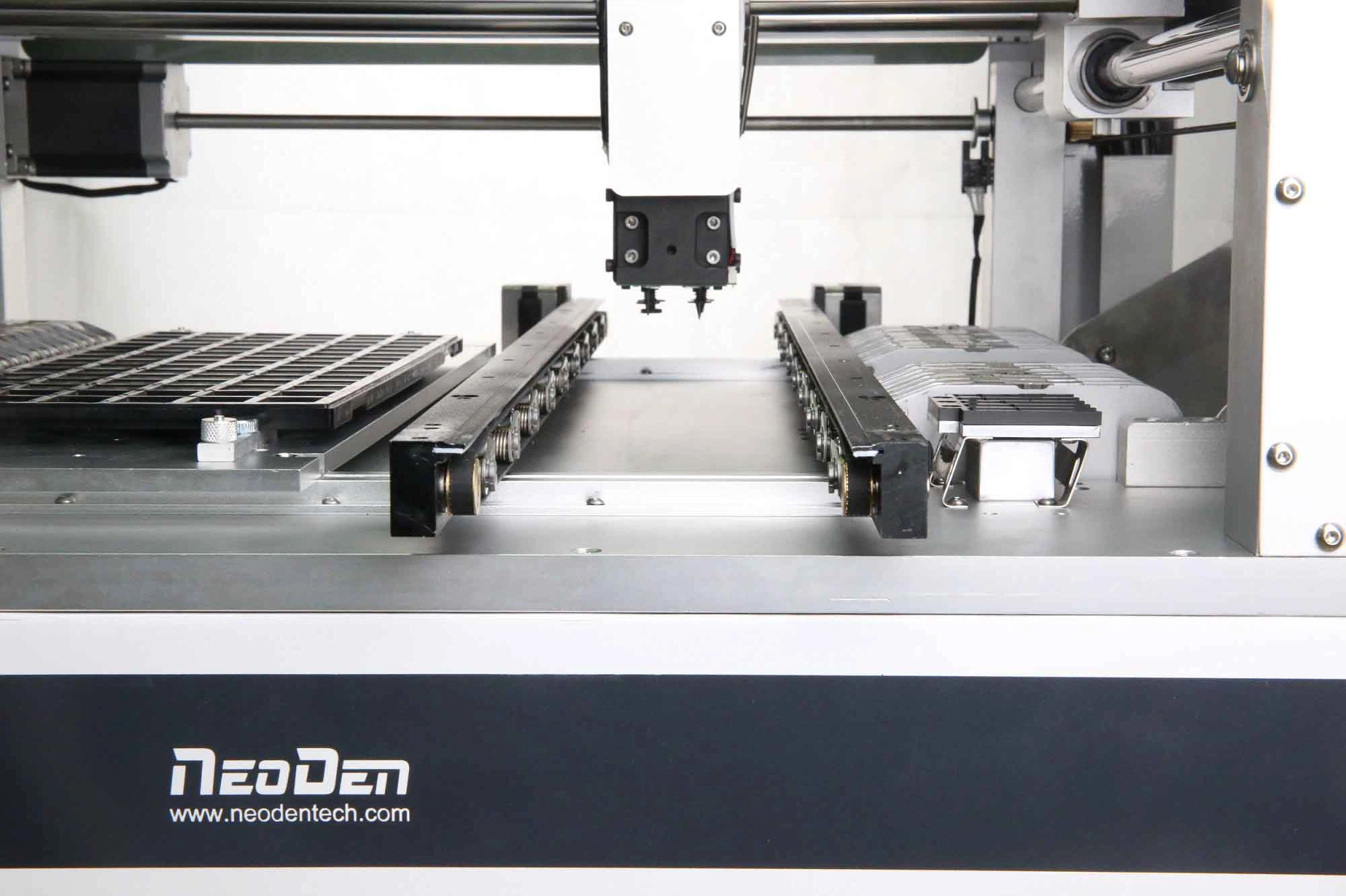

Nws pib ntsia
A. Kev txhawb nqa txuas mus rau cov khoom siv thauj khoom ncaj qha.
B. Teeb txoj haujlwm pub mis rau txhua qhov chaw.
C. Mount cov laug cam yooj yim.
Plaub Nozzles
Txhua lub taub hau me me tuaj yeem ntsia tau
Tsim nyob rau hauv kev tshem tawm, ua tiav symmetric
Mount tib lub sijhawm nrog 360 degrees
Kev pom kev
(saib-saib thiab nqis-saib lub koob yees duab)
Equipwith kev lag luam ceev CCD lub koob yees duab
Txhim kho qhov tseeb ntawm kev tso chaw los ntawm 0201 rau BGA
Cov khoom siv hluav taws xob
8mm daim kab xev-thiab-reel feeders
Txais yuav cov txheej txheem kho yuam kev
tuav txog 5 lub raj sib cais
Txog Peb
FAQ
Q1:Yuav ua li cas txog qhov kev cob qhia?
A: Peb muab cov lus qhia siv lus Askiv thiab qhia online cov vis dis aus rau kev ua haujlwm.
Lub ntsej muag rau lub ntsej muag kev kawm kuj tseem muaj yog tias koj tus kws tshaj lij tuaj rau peb lub Hoobkas.
Peb pab pawg txhawb nqa txuj ci ib txwm tos rau txhua qhov teeb meem los ntawm cov neeg siv khoom.
NeoDen muab online Q/A dawb thiab daws teeb meem kev txhawb nqa thiab kev qhia tswv yim pabcuam.
Q2:Yuav ua li cas txog kev saib xyuas?
A: a.Temperature thiab av noo: kub ntau 20 ℃ ～ 26 ℃, av noo ntau 45 ～ 70 ％.
b.Follow peb cov lus qhia raug hauv phau ntawv siv rau kev siv lub tshuab.
Q3: Koj lub tshuab puas muaj daim ntawv pov thawj zoo?
A: Yog, peb muaj daim ntawv pov thawj CE thiab peb tus kheej cov ntawv pov thawj txuj ci.
