Automatic SMD tshuab
NeoDen 10Automatic SMD tshuabyees duab
NeoDen10 Tsis Siv Neeg SMD Tshuab
Feature
Lub zeem muag pom kev sib haum xeeb ua rau kev ua haujlwm sai dua PnP nrog qhov tseeb dua. Ob lub koob yees duab pem hauv ntej kom ntseeg tau tias txhua qhov yog taw qhia kom raug, siv cov kev kho uas xav tau ua ntej tso. Cov tiam tshiab feeders tuaj yeem ua kom haum qhov siab txog li 16 hli. ND10 suav nrog kev kho tus kheej tsis siv neeg rail system (tus qauv) uas ua kom muaj tseeb PCB tuav thiab muaj peev xwm txaus rau rau caum-rau 8 hli daim kab xev lossis ntau yam ntawm cov khoom noj ntau txog 56 hli.
Pov thawj Versatile Technology
Qhov no 4-axis, Linux OS tuaj tos thiab qhov chaw tshuab muaj yim lub tshuab nqus tsev tso rau hauv lub tshuab nqus tsev uas ua haujlwm hauv khw huab cua.
Lub XY nkaus xwb tswj lub taub hau txav nrog ntau yam ntawm 500mm x 300mm.
Qhov kev daws teeb meem ntawm .01mm (10μm) thiab rov ua dua ntawm .02mm (20μm) tso cai rau ib qho kev sib koom ua ke ntawm XY yuav raug txheeb xyuas raws li qhov chaw ntawm lub feeder, pib ntawm ib qho array ntawm cov khoom nyob rau hauv ib lub tais los yog daim kab xev luv, ib lub cim fiducial lossis qhov chaw. uas ib feem yuav tsum tau muab tso rau hauv PCB.
Specification
| Khoom npe | NeoDen10 Tsis Siv Neeg SMD Tshuab | Qhov tseeb qhov chaw | 0.01 hli |
| Nozzle Q'ty | 8pcs ib | Max Qhov Chaw Ceev | 18, 000CPH |
| Reel Daim kab xev Feeder Q'ty (Max | 66 (Electric / Pneumatic) | Nruab Nrab Mounting Ceev | 13, 000CPH |
| Max PCB loj | 500 * 300mm (1500mm optinal) | Qhov hluav taws xob | 220V / 50HZ thiab 110V / 60HZ |
| Kev ua haujlwm System | Patented SMT Mouting Operation System V1.0 | Kev taw qhia hloov PCB | Sab laug → Sab xis |
| Net nyhav | 1100Kgs | Tshuab Dimensions | L1300mm * W1100mm * H1375mm |
Paub meej

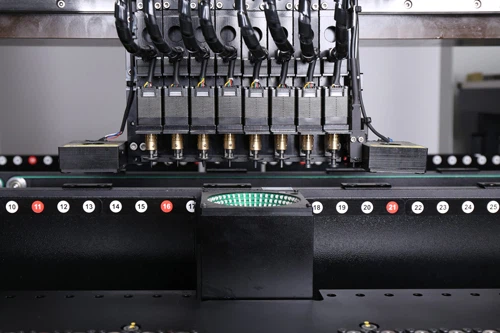

Kev kub ceev Nozzle
8 Synchronized Nozzles
Xyuas kom muaj qhov tseeb qhov muab tso rau qhov tseeb
Pneumatic Feeder
66 Reel Daim kab xev Feeder
Kev ua haujlwm yooj yim thiab kev ua haujlwm siab
Kev pom qhov system
Ob lub koob yees duab
Pem hauv ntej thiab nram qab siab txhais lub koob yees duab
Tsav Tsav
Panasonic Servo Tsav A6
Ua lub tshuab ua haujlwm kom raug
Khoos phis tawj
Zaub loj: 12 nti
Ua kom lub tshuab siv tau yooj yim dua
Lub teeb ceeb toom
Triple xim ntawm lub teeb
Zoo nkauj thiab elegant qhia tsim
Peb Qhov Kev Pabcuam
1. Kev pabcuam tshaj lij hauv PNP tshuab teb.
2. Muaj peev xwm ua tau zoo dua.
3. Ntau lub sij hawm them nyiaj xaiv: T / T, Western Union, L / C, Paypal.
4. Cov khoom zoo / Cov khoom siv zoo / cov nqi sib tw.
5. Kev txiav txim me me muaj.
6. Teb ceev ceev.
7. Muaj kev nyab xeeb thiab kev thauj mus los sai dua.
Yog tias koj xav tau, thov hu rau peb kom paub ntau ntxiv.
Hais txog peb
Hoobkas
Zhejiang NeoDen Technology Co., LTD., nrhiav tau nyob rau hauv 2010, yog ib tug kws chaw tsim tshuaj paus tshwj xeeb nyob rau hauv SMT xaiv thiab qhov chaw tshuab, reflow cub, stencil printing tshuab, SMT ntau lawm kab thiab lwm yam SMT khoom. Peb muaj peb tus kheej R & D pab neeg thiab tus kheej lub Hoobkas, ua kom zoo dua ntawm peb tus kheej nplua nuj kev paub R & D, kev cob qhia zoo, tau txais lub koob npe nrov los ntawm cov neeg siv khoom thoob ntiaj teb.
Peb nyob hauv txoj haujlwm zoo tsis tsuas yog muab koj lub tshuab zoo pnp, tab sis kuj yog qhov kev pabcuam zoo tom qab muag.
Cov kws tshaj lij engineers tau kawm zoo yuav muab kev txhawb nqa rau koj.
10 engineers muaj zog pab neeg tom qab kev muag khoom tuaj yeem teb cov lus nug thiab cov lus nug hauv 8 teev.
Cov kev daws teeb meem kev tshaj lij tuaj yeem muab tau hauv 24 teev ob hnub ua haujlwm thiab hnub so.
Daim ntawv pov thawj
Exhibition
FAQ
Q1.Nov yog thawj zaug kuv siv lub tshuab zoo li no, nws puas yooj yim rau kev khiav lag luam?
A: Peb muaj lus Askiv tus neeg siv phau ntawv thiab qhia video qhia koj siv lub tshuab.
Yog tias tseem muaj lus nug, pls tiv tauj peb los ntawm email / skype / whatapp / phone / trademanager online service.
Q2.Kuv tuaj yeem yuav tshuab li cas ntawm koj?
A: (1) Tham nrog peb ntawm kab lossis hauv e-mail.
(2) Sib tham thiab paub meej tus nqi kawg, shipping, txoj kev them nqi thiab lwm yam nqe lus.
(3) Xa koj daim ntawv them nqi perfroma thiab lees paub koj qhov kev txiav txim.
(4) Ua kom them nyiaj raws li txoj hauv kev muab tso rau hauv proforma nvoice.
(5) Peb npaj koj daim ntawv xaj raws li daim ntawv them nqi proforma tom qab lees paub koj cov nyiaj them tag nrho. Thiab 100 feem pua zoo kuaj ua ntej shipping
(6) Xa koj daim ntawv xaj los ntawm kev nthuav qhia lossis los ntawm huab cua lossis los ntawm hiav txwv.
Q3. Yuav ua li cas txog lub warranty?
A: Peb txhawb ib xyoo warranty.
Peb yuav pab koj raws sijhawm.
Tag nrho cov khoom seem yuav muab pub dawb rau koj hauv lub sijhawm lav.
Yog tias koj xav tau, thov tsis txhob yig xa koj cov lus nug.
